Air Stairs/VIP Lift/Crew Ladders

• Airstairs - VIP Lift
• Airstairs
• Airstairs Auxiliary Hydraulic Power Pack
• Aerocon's Boeing B737 Airstairs Replacement
• Crew Ladders

---

Airstairs - VIP Lift

Aerocon’s Airstairs VIP Lift provide a VIP-class boarding experience without the need for ground support equipment.

• Self-contained and fully automated
• Easy to operate, rugged and reliable
• Up to 500 lbs weight capacity stowed in its own cargo container with automatic hoist systems
• Available for most aircraft models and door locations A300, 310, 320, 330, 340, 350, 380; B707, 737, 747, 757, 767, 777, 787; L-1011 and DC-8

Standard features:

• Integral 28 VDC power drive system
• Dedicated control panel, includes wireless control
• Powder-coated finish with chrome rails
• Emergency backup systems/optional features
• Loading and unloading stretchers—for ambulatory purposes
• Custom colors and finishes
• Lexan hard top and cover
• Stowage in its own dedicated cargo container equipped with automatic hoist system for loading and unloading of the hoist from the ground

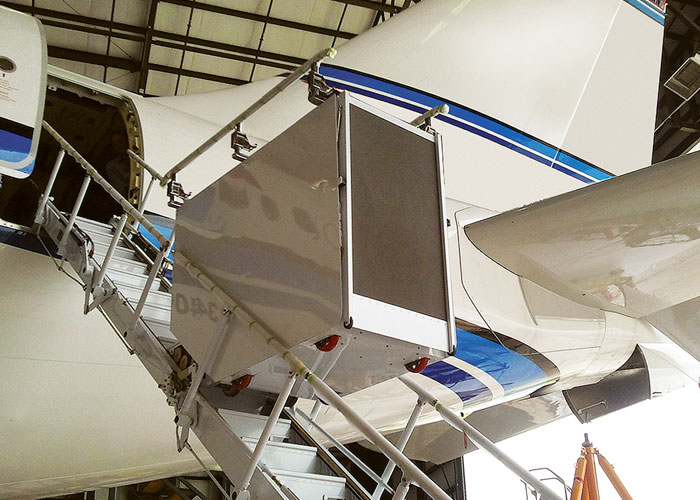

Aerocon Airstairs VIP Lift for all varieties of aircraft models B747-8, B777, B767, B787, A330, A340, A350, A380 Click here for larger picture.	Aerocon Airstairs VIP Lift for all varieties of aircraft models B747-8, B777, B767, B787, A330, A340, A350, A380 Click here for larger picture.

Return to top

Airstairs

STC’d airstairs are available for the following aircraft:

• Boeing 707, 720, 727, 737, 747, 757, 767, 777 and 787
• Douglas DC-8
• Lockheed L-1011
• Airbus A310, A318, A319, A320, A330, A340 and A350
• Any other model as required

Currently, Aerocon is the only company offering airstairs on many of these models.

Each stair shares common design features for easy scalability into other applications. The unit is mounted to the cabin floor and deploys through the desired door. The airstair is stowed in its own closet, so as not to obstruct the door when ground support equipment is being used.

Return to top

Airstairs Auxiliary Hydraulic Power Pack

The Airstair Auxiliary Hydraulic Power Pack (AAHPP) Model No. AC29-1000 is a self-contained unit for purging air out of the Airstair hydraulic system. By cycling the Airstair up and down two times, the AAHPP automatically purges air out of the system while filling the system with hydraulic fluid.

It can be used in troubleshooting or in checking replaced Airstair components. By toggling the Deploy / Retract switch, you can replace a hydraulic actuator in a timely manner.

The AAHPP can also be used as a backup in the event of Airstair pump motor failure, or to override a shorted switch in the deploy circuit. The AAHPP has the following capabilities:

• It can operate off the Aircraft power supply or with the Power Adapter, P/N CA3100E24-11S.
• It can operate off a portable regulated DC Power supply box that plugs into a 220 AC outlet or with the battery adapter (customer furnished part).
• It can be plugged directly into a 24 Volt battery box.

Return to top

Aerocon's Boeing B737 airstairs replacement

• Direct replacement of existing airstair on B737
• 50% reduction in weight
• Significant reduction in maintenance
• Plug and play unit installation
• More overall reliability
• Minimum down time for installation (approximately 40 hours)
• Improvement to aircraft forward center of gravity
• Absolutely no change to the existing aircraft

Return to top

Crew Ladders

Aerocon manufactures crew ladders for various aircraft.

Typical ladder installations deploy through access hatches, and have telescoping styles in order to minimize installation space requirements. Crew ladders are available for:

• Boeing 757 - Boeing 767
• Boeing 777
• Airbus 310
• Airbus 330 - Airbus 340
• Any other model as required

Many crew ladders are hydraulic, rather than mechanical, for quieter, more reliable operation.

The polished metal and China white color scheme complements and accentuates the aircraft's exterior image.
